2025 Nv233

Desire Nothing Except More Time on the Water

BUILD THE Nv233 AR icon

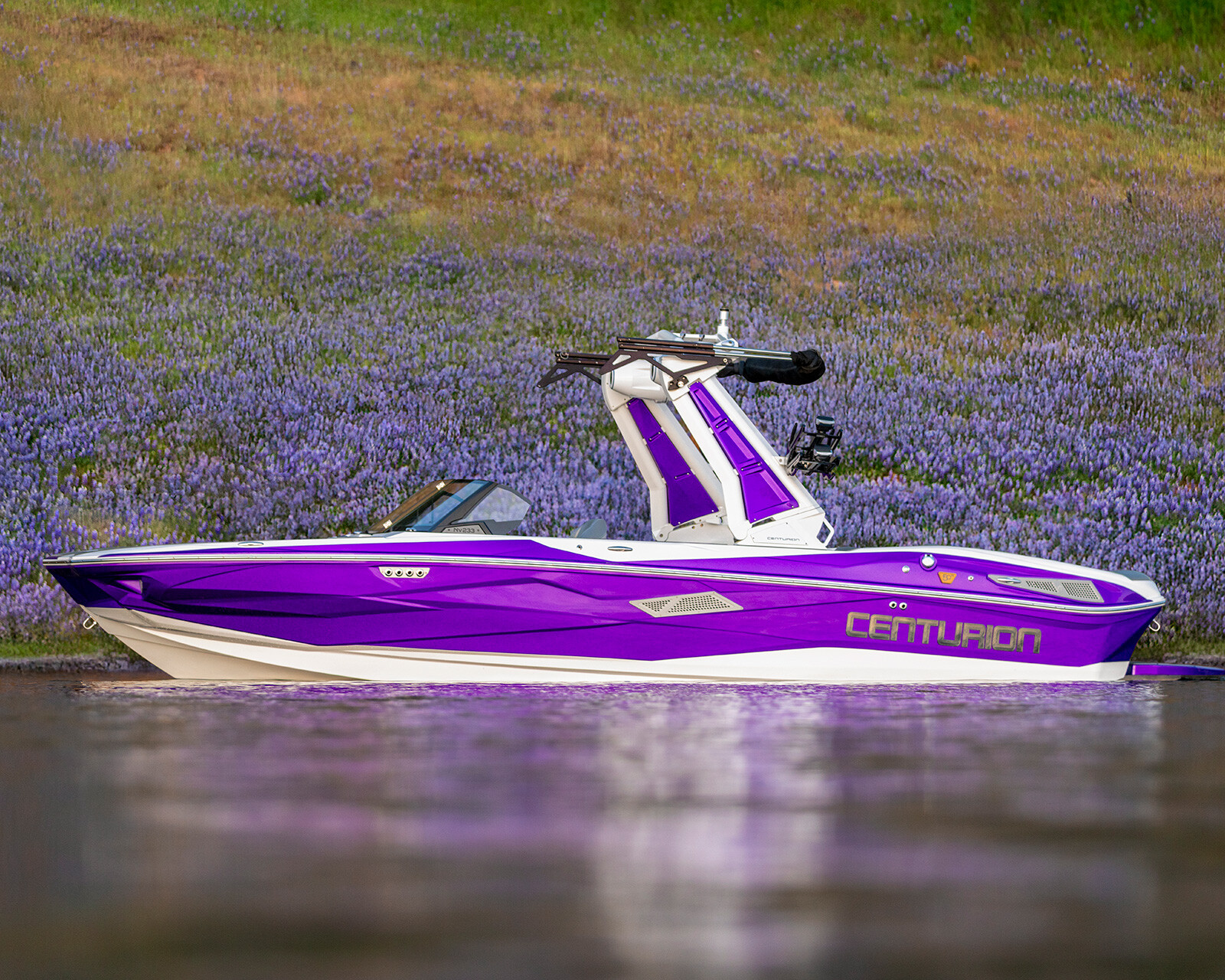

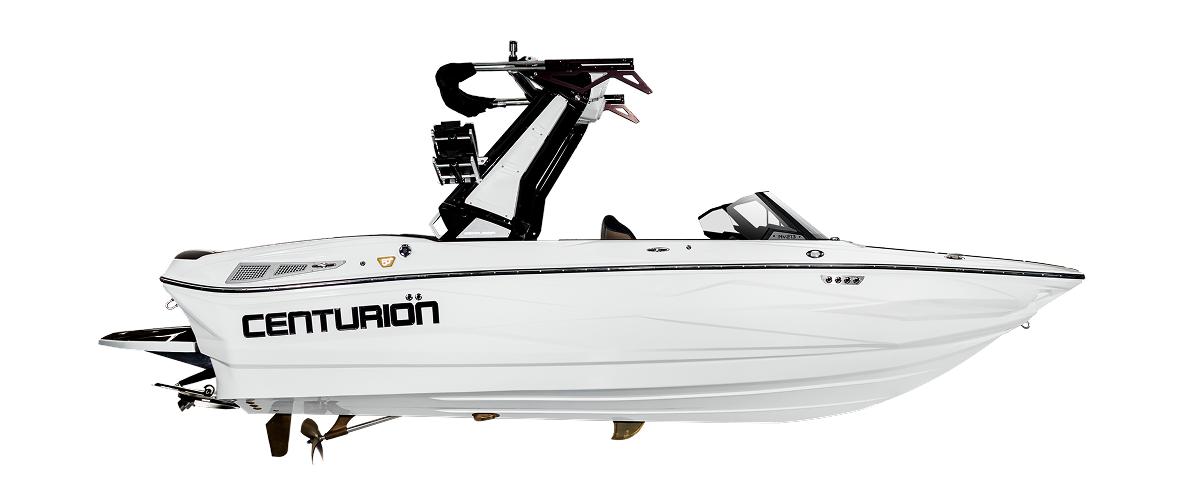

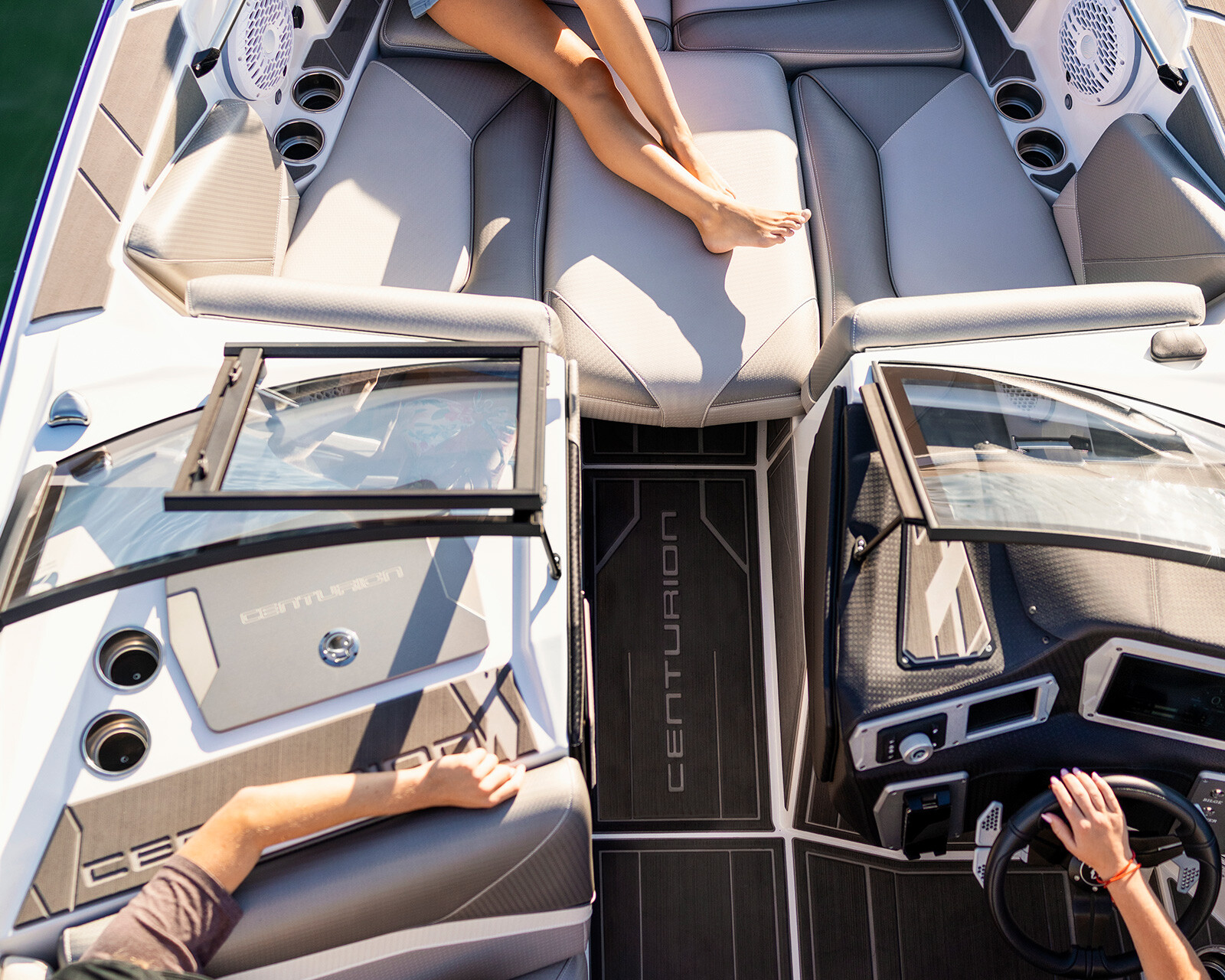

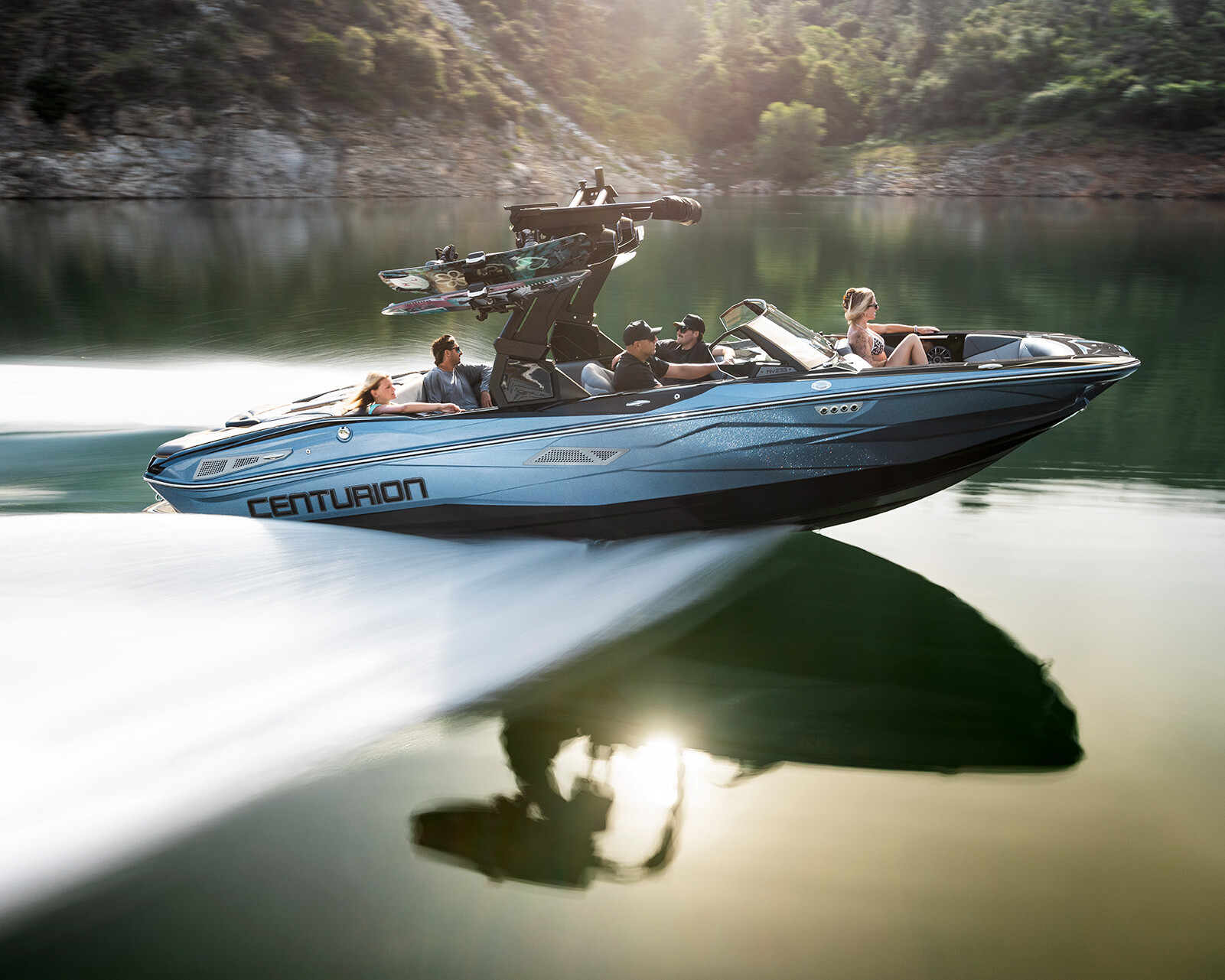

The Nv233 takes it up a notch from the entry Centurion Nv213, with two more feet of length, room for two more passengers and the exotic sports car look that says high performance even when docked. It comes with up to 5000 pounds of available ballast, more than half of which can be filled in 90 seconds with available RAMFILL2. This isn’t a stripped-down version of a more expensive Centurion or an older design dressed-up new, the Nv233 is designed from the water up to deliver precisely what you need to get the most out of your water sports experience. The Nv233 offers world championship caliber surf, with the ability to propel you to your own best performance. Unique to the Nv Series design is the unobstructed GatorStepped space between the tower and the dash that facilitates easy communication directly with a rider – perfect for coaching. An abundance of built-in quality features means the Nv233 comes with everything you need to get on the water and enjoy a great ride from day one, but that doesn’t mean you can’t option up as well. This 23-foot Centurion leaves nothing to be desired except more time on the water.

Length

23’ 3”

Beam

102”

Draft

36”

Fuel Capacity

70 gal

Weight

5425 lbs

Weight on Trailer

6600 lbs

Seating Capacity

14 People

STD Torque

409 ft/lb

Max Torque

465 ft/lb

Total Available

5000 lbs

Bow Ballast Tank

450 lbs

Optional Bow Ballast*

1850 lbs

Optional Rear Ballast*

1500 lbs

Optional Transom Ballast

Sub-Floor Pumped Ballast

2700 lbs

*Optional plug and play ballast

Overall Length

Length w/out Platform

Length w/out Platform, Tongue Swung

Trailer Width

Height w/out Tower

Height, 18" Wheel Package (Add)

Height w/ Battle Advanced Tower

10' 6"

Height w/ Battle Advanced Tower Down

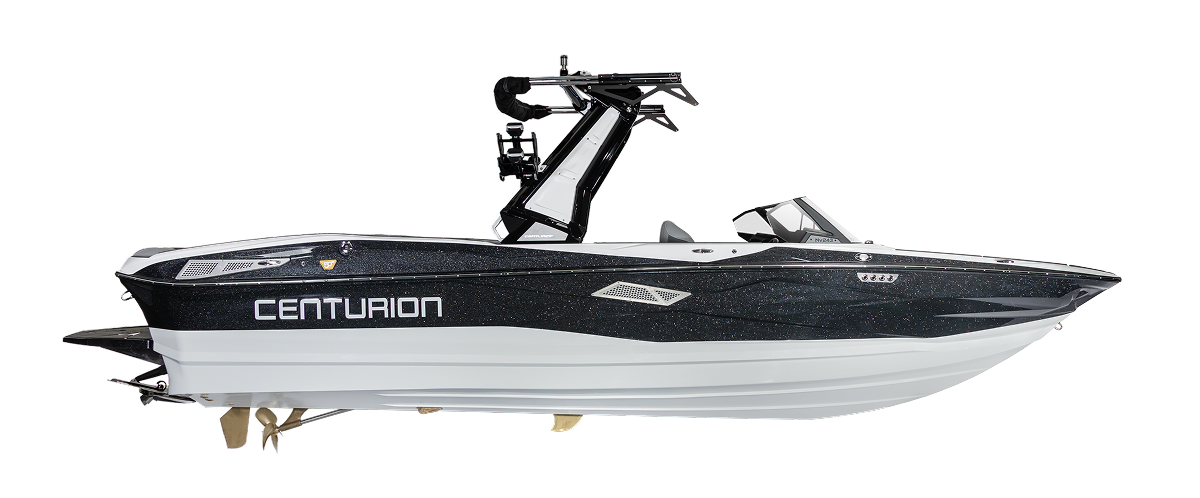

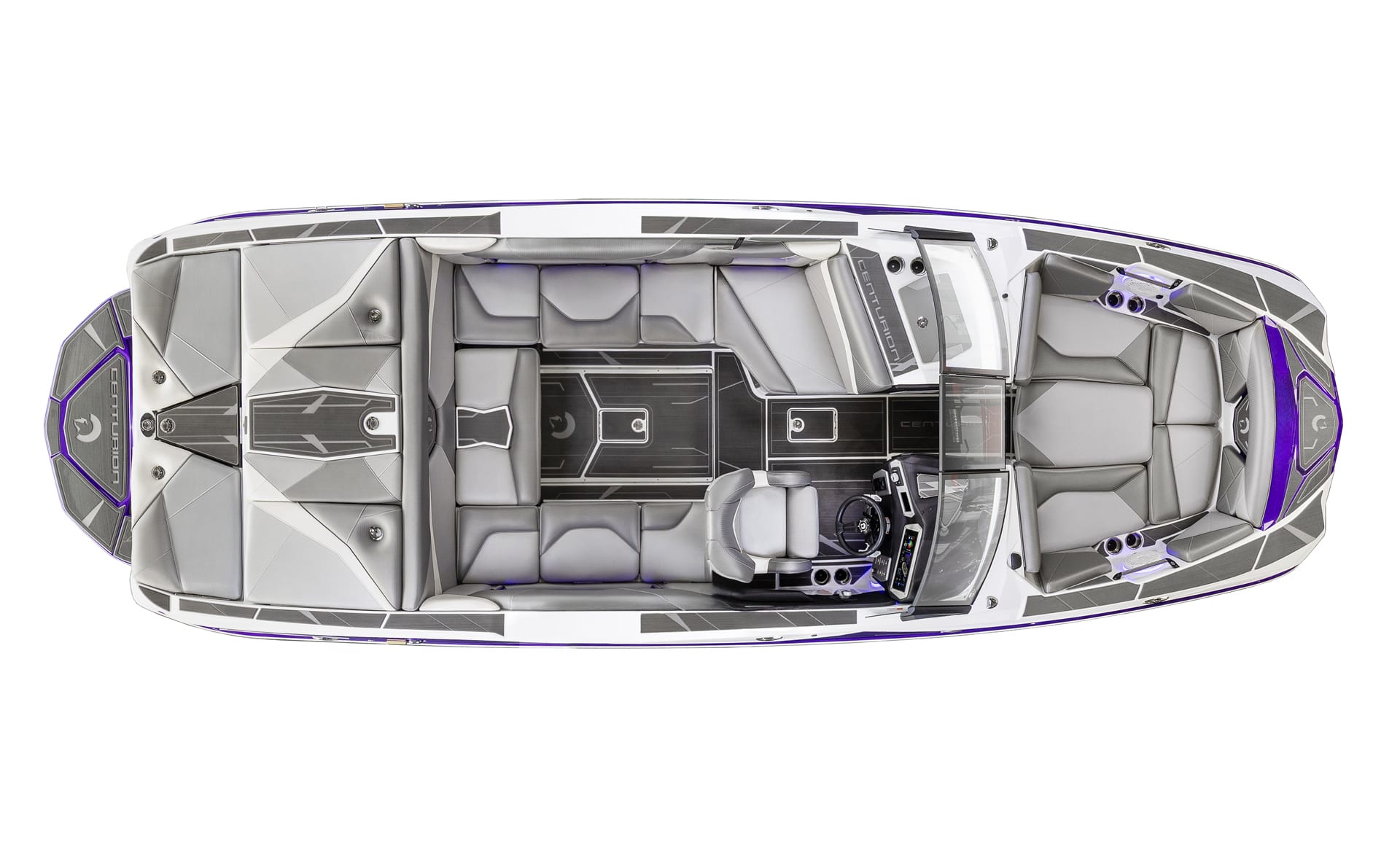

Model Shown: Slice Scheme | Core | Hull Main Front: Onyx Black | Hull Base: Stone Grey | Swim Step: Onyx Black | T ower | Battle Advance T ower (Black) | T ower Accent: Onyx Black |
Interior | Hex Accent | Main: Stone Gray | Base: Whisper Grey | Accent: Onyx Black | Welt: Onyx Black | Stitching Accent: Black | Dash Accent: Stone Gray| Interior Side Panel: Onyx Black | Gator Step: 2-Color Centurion Cut | 1st Color T op: GS Shark Fin | 2nd Color Bottom: GS Black

Fineline Industries LLC reserves the right to change model specifications, standard and optional equipment, color schemes and pricing at any time without notice or incurring obligations. It is the Dealer’s
responsibility to adhere to all State and Local regulations and laws governing minimum requirements needed on each boat, such as trailer brakes, kill switches and other safety equipment.

*Surf Ready – USD plus shipping, tax, license and dealer prep in North America.

Thoughtful Features and Desirable Options

Centurion’s Nv series models are designed to get you on the water at a great price. That doesn’t mean they are bare bones or that you cannot heavily option them if you choose.

Nv233 DEEP DIVE

Take a Walkthrough

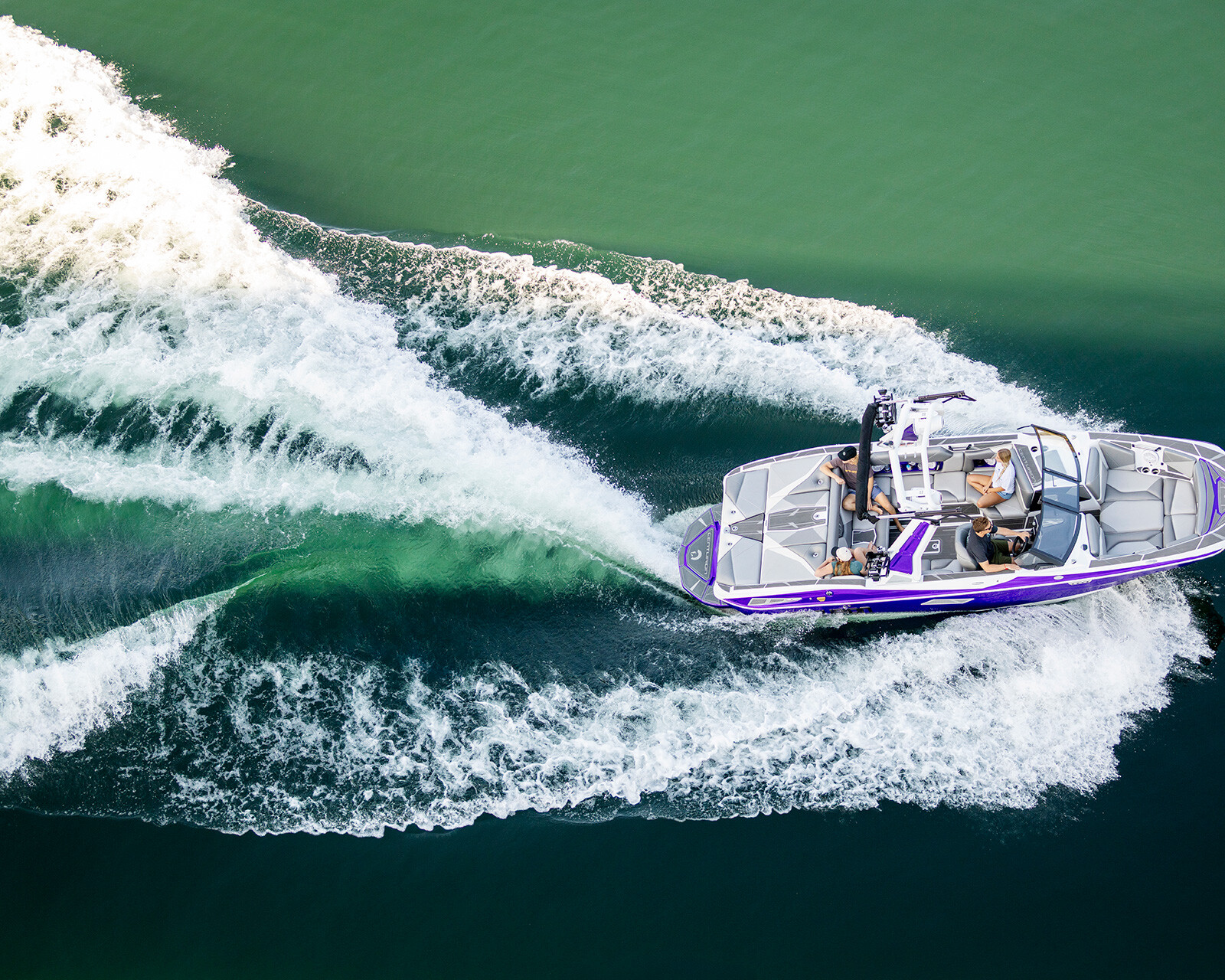

Centurion’s new Nv Series models put you on the water in a surf-ready boat at minimal cost. Newly built from the water up on the waves that make Centurion great, both the Nv213 and Nv233 feature our established winner – the Opti-V Hull – which offers the world’s best waves, wake and ride. Any wake sports enthusiast longing to get into a better boat will be thrilled with these new models, which include standard features that might be listed as options in other boats. No matter which Nv model you choose, the bottom line is that you’re getting a surf-ready boat with Centurion’s legendary waves, wake and ride.

With its 20 degrees of deadrise at the transom, the Opti-V Hull displaces more water, before any extra weight is added, while preserving a great rough water ride. At each corner of the transom a flat triangle extends towards the bow creating lift along the rear half of the boat for a level running attitude, front to back as well as side to side. Due to this balanced design, the Opti-V Hull enhances fuel economy and provides a much quieter ride than most boats delivering this type of power. With hook built into the rear edge of the delta pad, the seated driver can see over the bow while pulling a rider without compromising the waves or wakes thanks to a level running attitude. The hull also deflects rollers, at the bow and transom, so big water can’t spoil your fun. It’s clear the Opti-V Hull delivers the best waves, wakes and ride - in all conditions.

Discover Opti-V

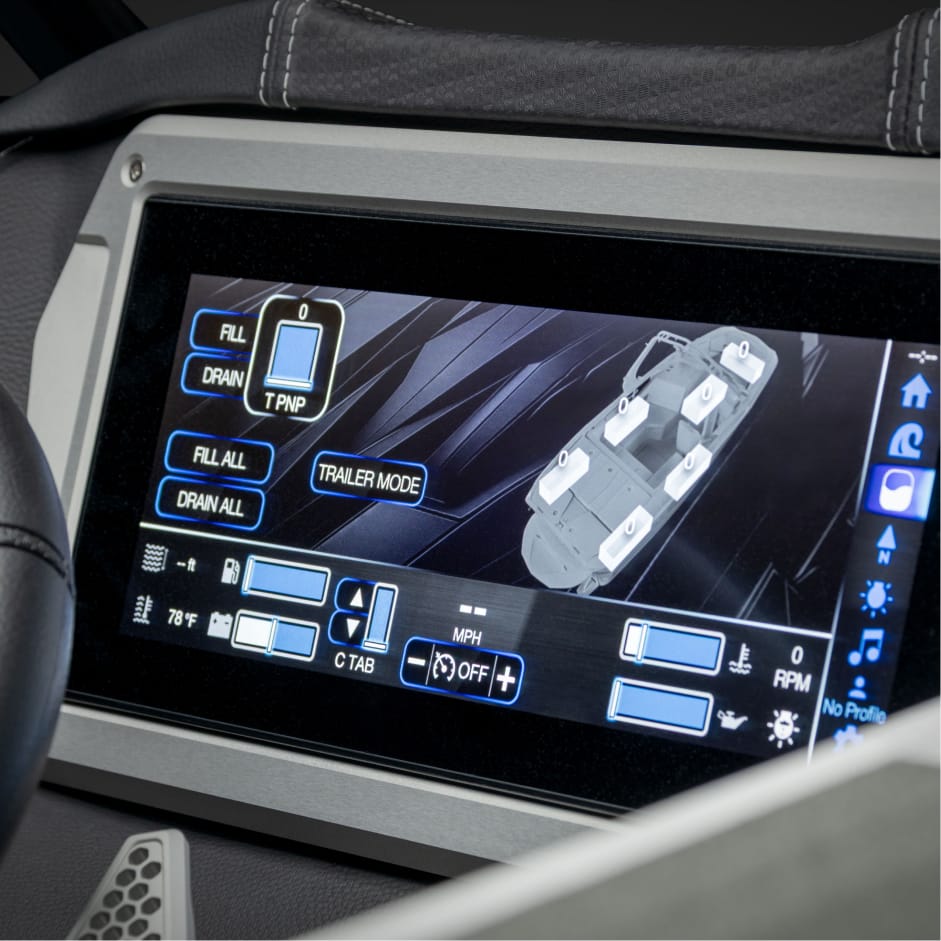

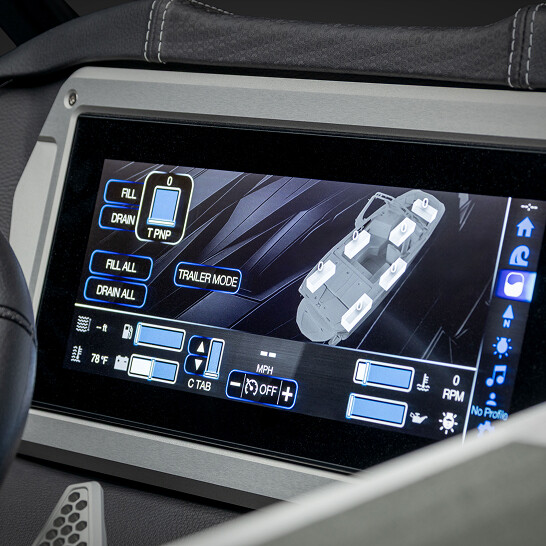

Our ballast is distributed evenly throughout the boat, displacing weight along the entire running surface to create a longer wave and balanced running attitude, front to back, with virtually no bow rise to distract the driver. We believe this creates a superior experience for drivers, passengers and riders. The Nv233 comes with as many as six precisely placed ballast locations that, when combined, create 5000-pounds of displacement. This 23’ 3” performance machine can hold up to 14 people while pushing out the kind of wave that makes you want to go all day long.

Discover Ballast

With the Nv Series you will find cost savings not just in the purchase price, but even in fuel efficiency. Built from the water up on our exceptionally efficient Opti-V Hull, the Nv213 and Nv233 benefit from that design. Optimized with triangles built into the rear corners of the hull that stretch forward towards the bow, the Opti-V Hull creates lift and balance when underway reducing resistance and increasing fuel efficiency – more than 50% better than any other sports boat out there. Fuel efficiency translates directly into more time on the water and less expense for you. The hull design eliminates drag and creates a level running attitude for less resistance, so the engine simply doesn’t work as hard to push a Centurion through the water, whether it’s weighted to ride or not.

Discover Fuel Efficiency

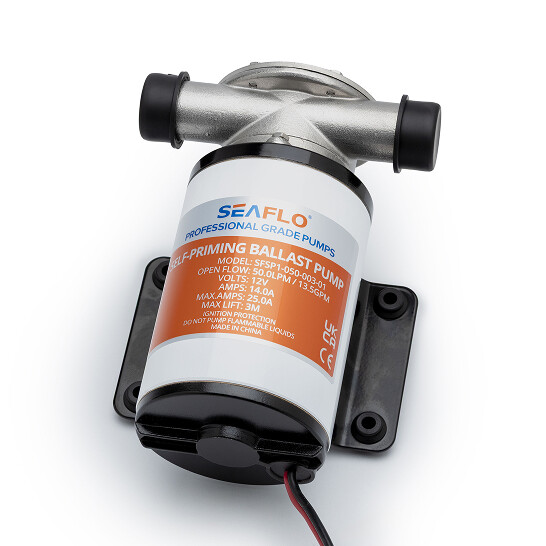

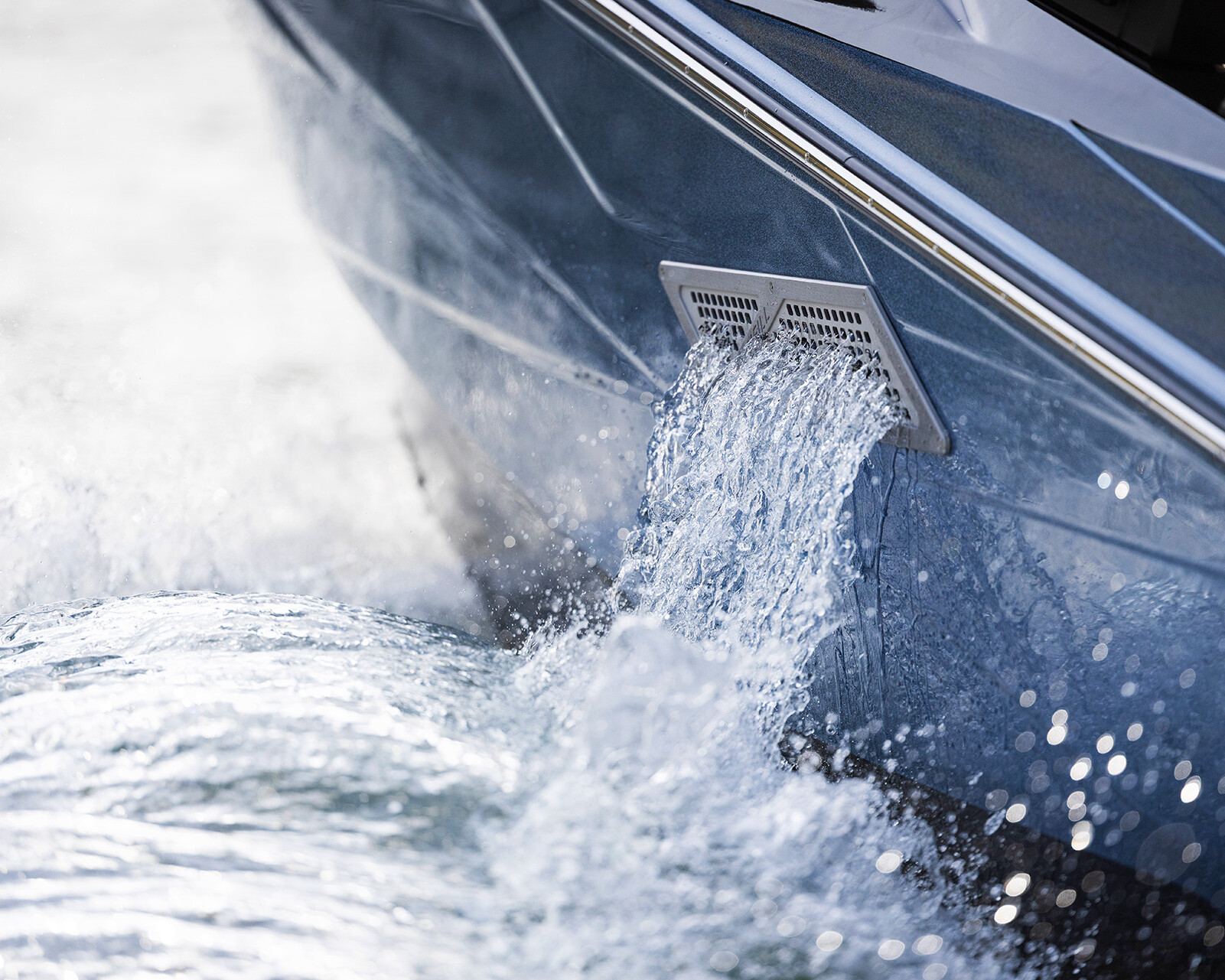

We call our available RAMFILL2 ballast system the “Baller.” It’s a nearly maintenance free system that offers 1850-plus pounds ballast capacity that fills in 90 seconds. Plastic is eliminated, as instead we have four stainless steel two-inch ball valves (two in two out). The large sub-floor tanks extend from the helm to the transom on each side of the lounge. This just adds to the well-distributed ballast placement and helps create longer waves while eliminating bow rise.

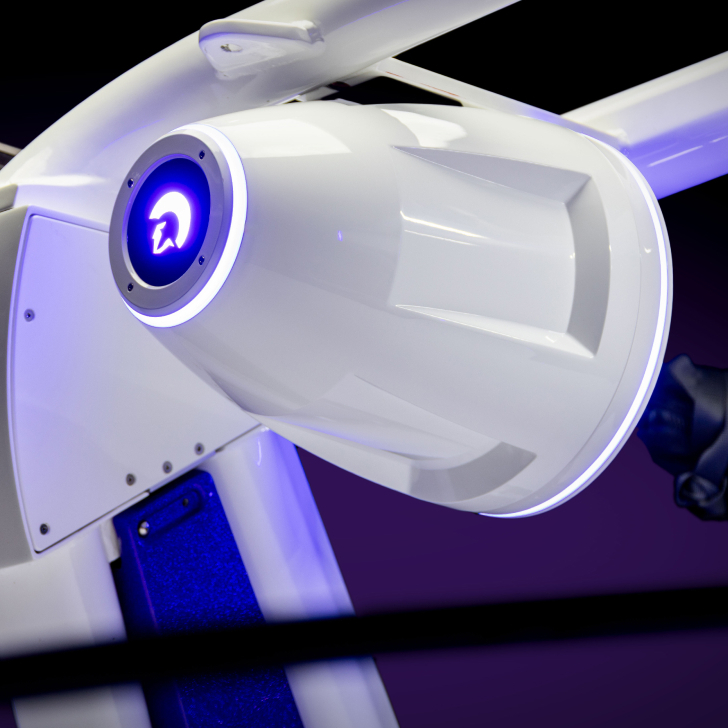

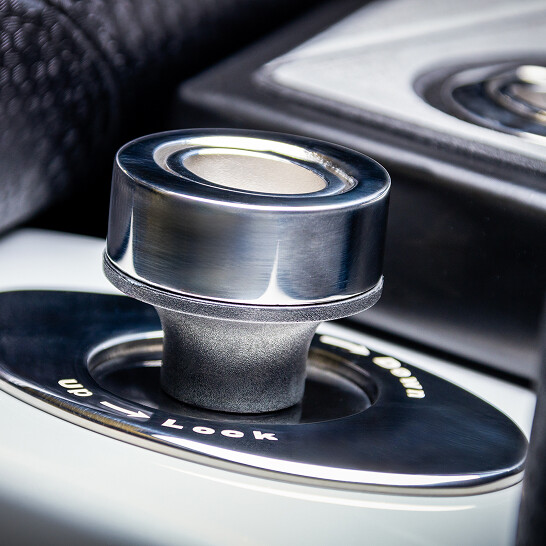

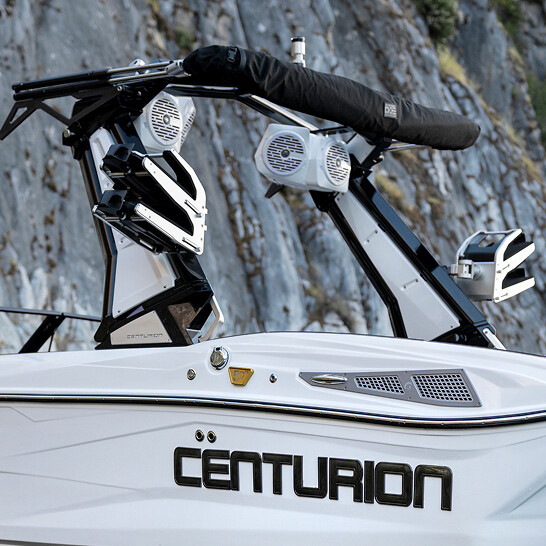

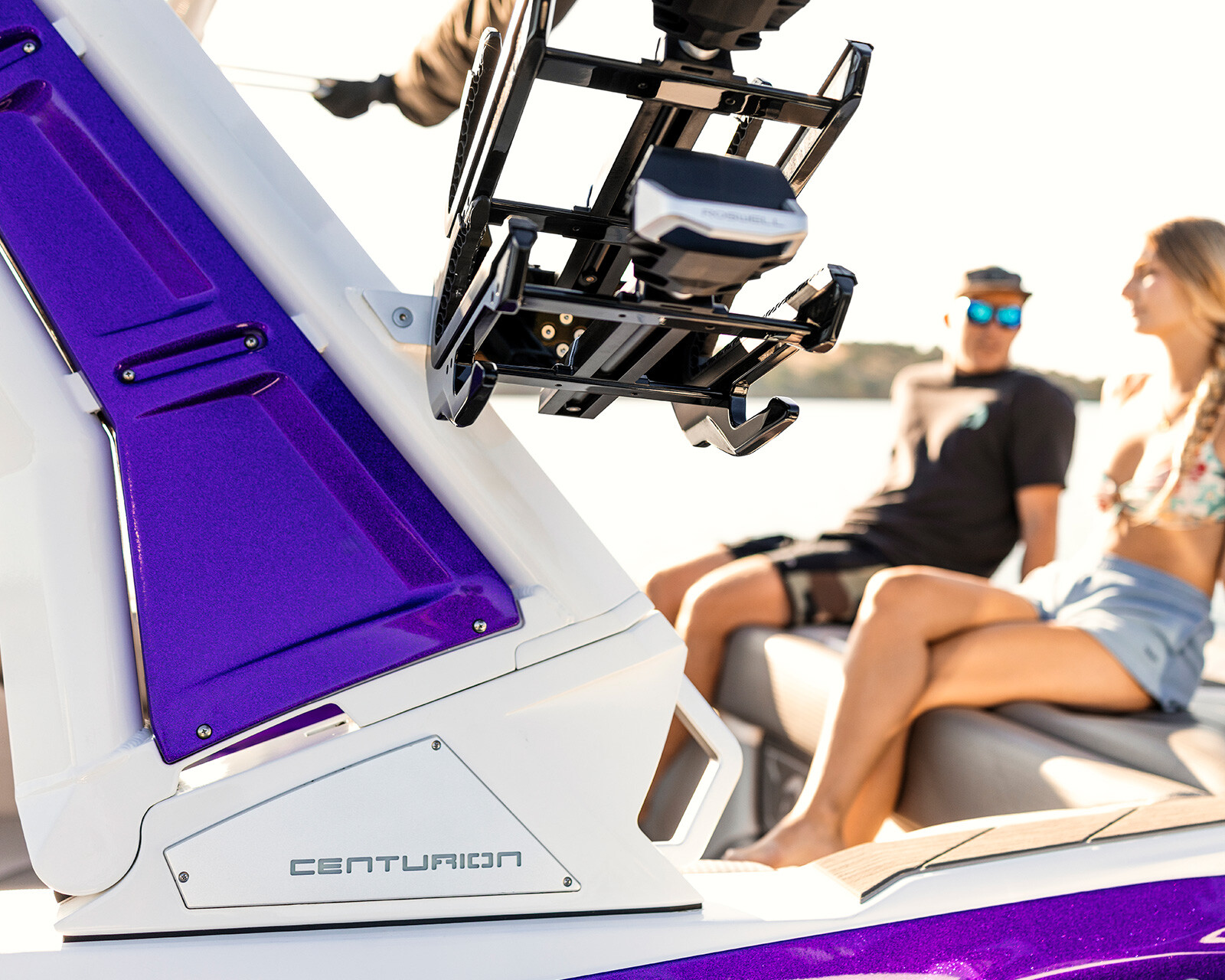

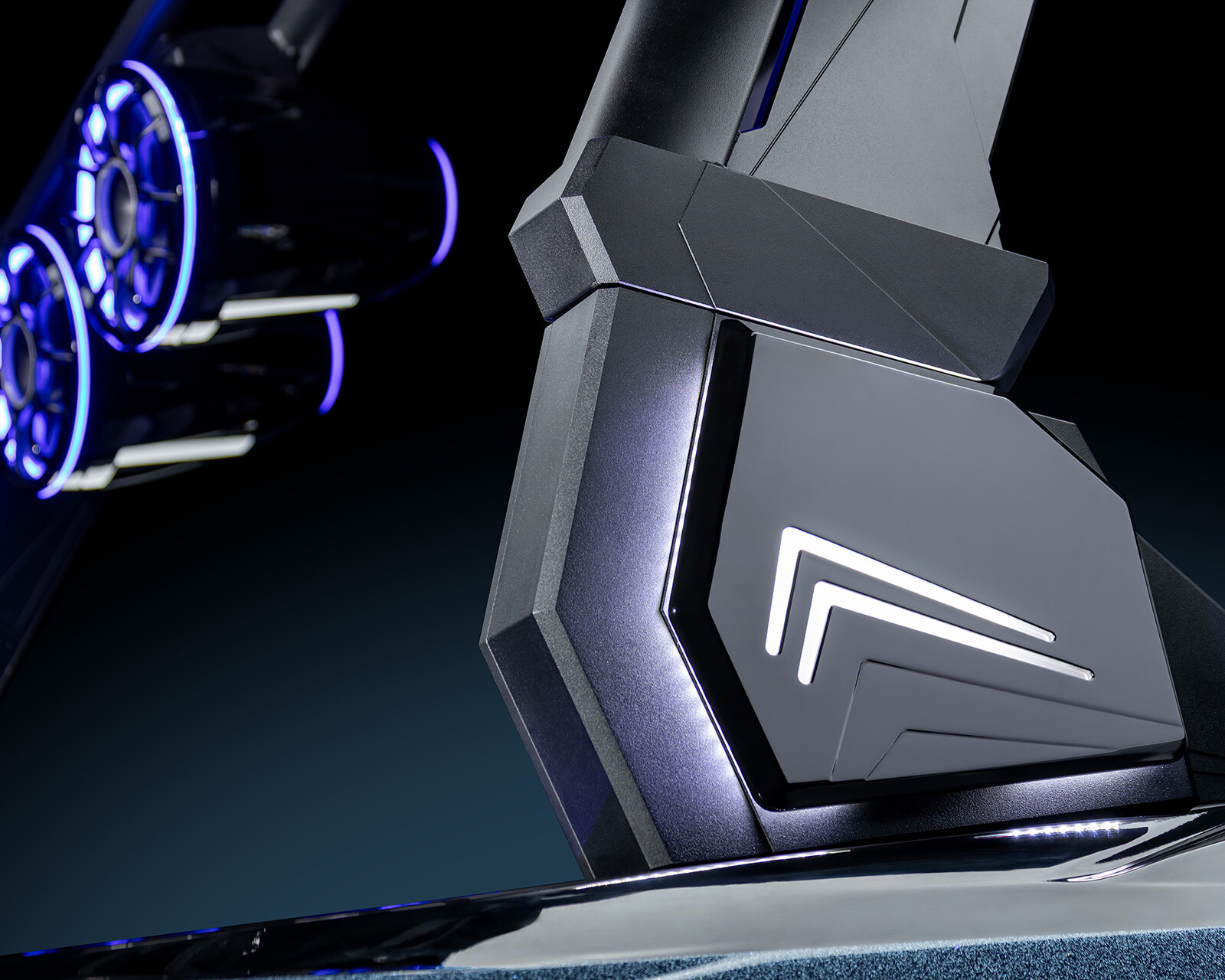

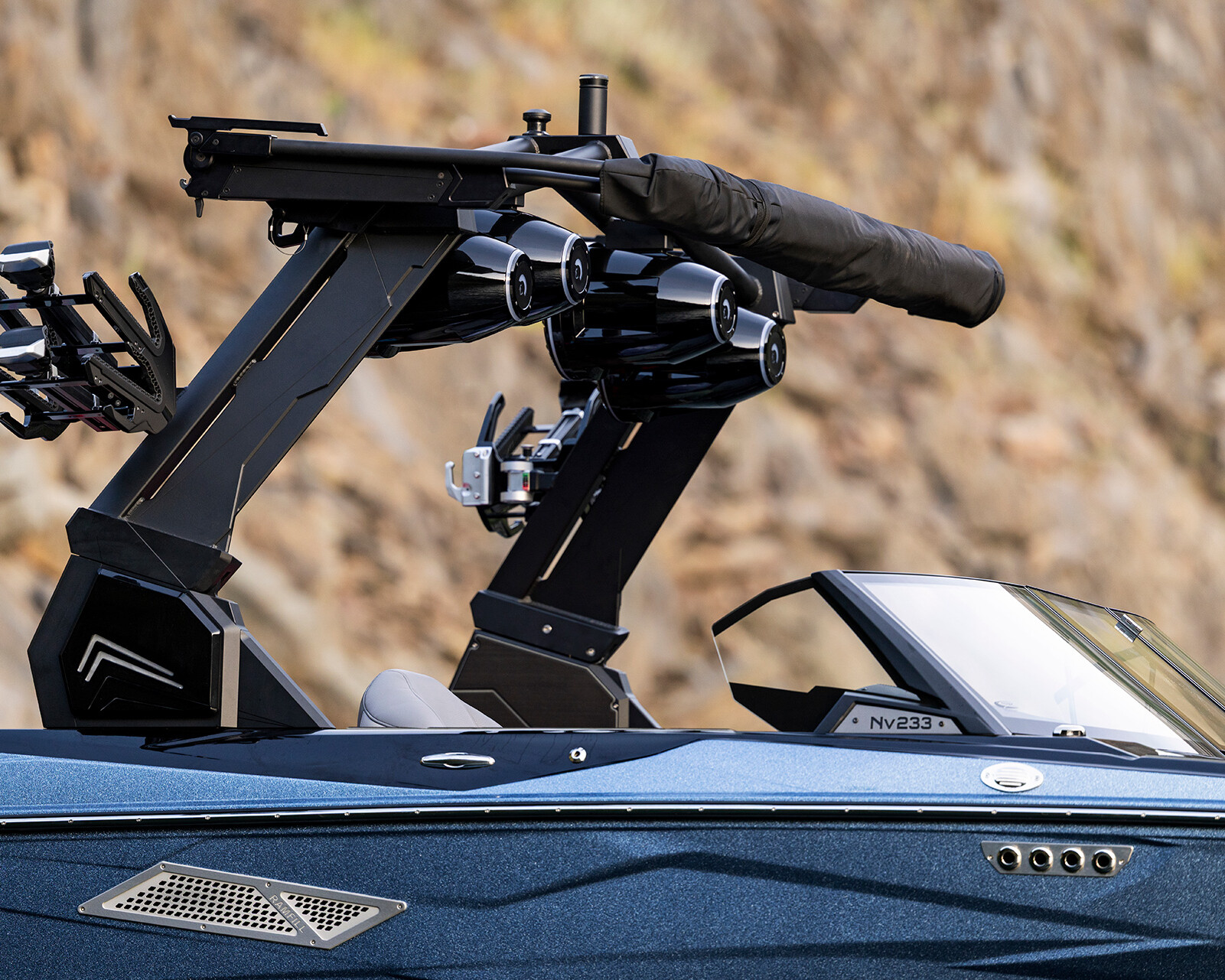

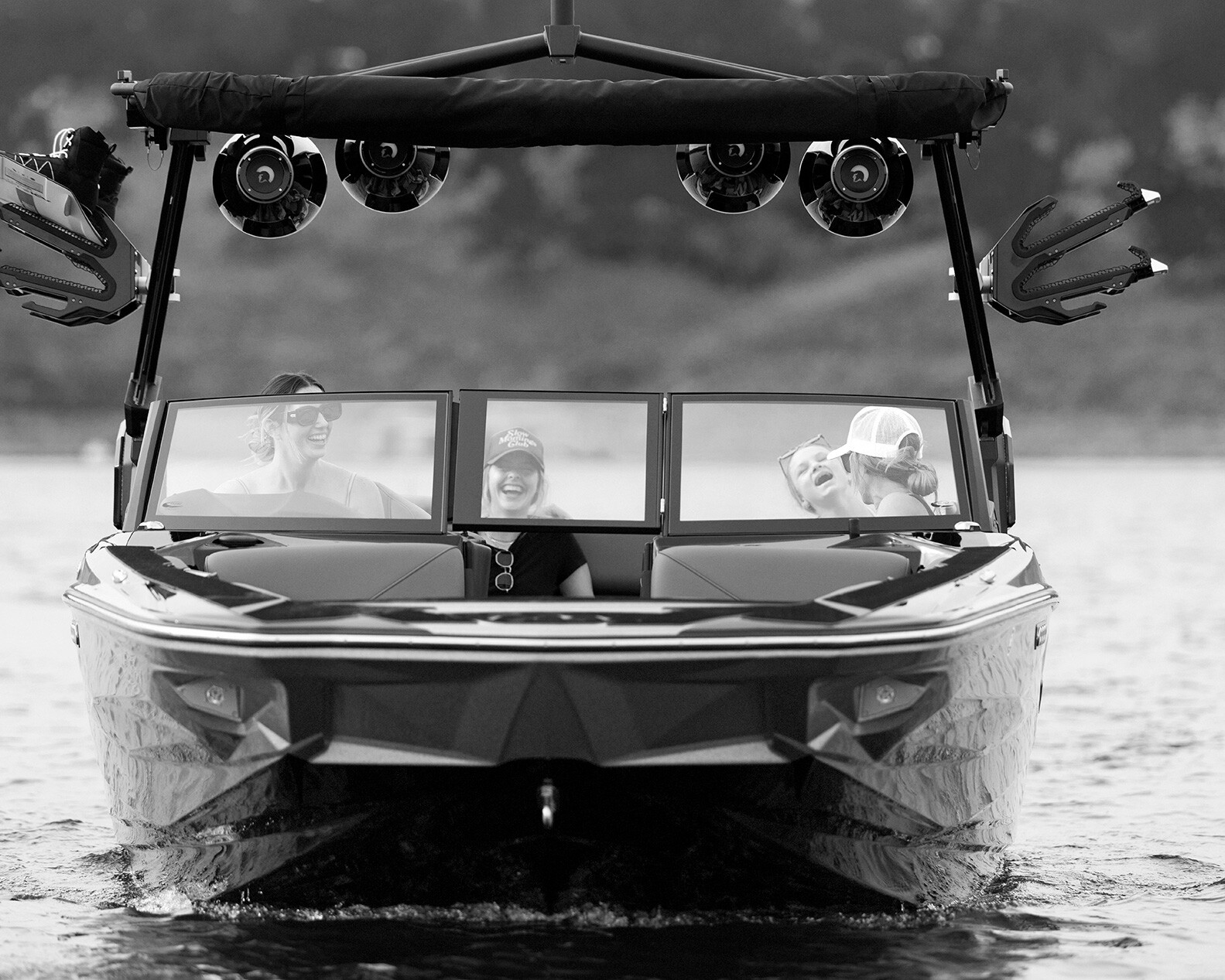

The aggressive Battle Advance Tower by Roswell, matches perfectly with the Nv Series. This tower can easily be folded by an individual in less than a minute. That’s efficient design in action. When it’s repositioned to the upright position you can hear the strength of the Battle Advance. No rattle, no shimmy, no shake. The silent movement indicates the precision with which this tower was made. The Roswell Patented CAM Over Latch design locks the hoop of the tower securely on to its base.
