2025 Fe22

Good things come in small packages

BUILD THE Fe22 AR icon

Good things come in small packages. The Fe22 is the perfect boat for singles, couples, smaller families and avid wake sports enthusiasts. Don’t be fooled though, the concept of small is relative, as this boat holds up to 13 people. And this compact 22-foot powerhouse has everything you need to master the waves and amp up your skills in an easy-to-trailer and easy-to-store size. As with all our boats, it is simple to customize your Fe22, from colors to options like the DropZone Auto Tower by Roswell and the QuickSurf Pro System to build out the exact boat that fits your sports style and experience. Add a single rear facing camera to make it effortless for the driver to keep an eye on what’s happening behind the boat without turning around. Flip-up stadium seating options offer a touch of comfort and support and an optional heated driver’s seat will make it easy to enjoy a ride on cooler mornings.

Length

22'

Beam

102”

Draft

36”

Fuel Capacity

70 gal

Weight

5100 lbs

Weight on Trailer

6700 lbs

Seating Capacity

13 People

STD Torque

409 ft/lb

Max Torque

450 ft/lb

Total Available

5150 lbs

Bow Ballast Tank

350 lbs

Optional Bow Ballast*

350 lbs

Optional Rear Ballast*

1300 lbs

Optional Transom Ballast

450 lbs

Sub-Floor Pumped Ballast

2600 lbs

*Optional plug and play ballast

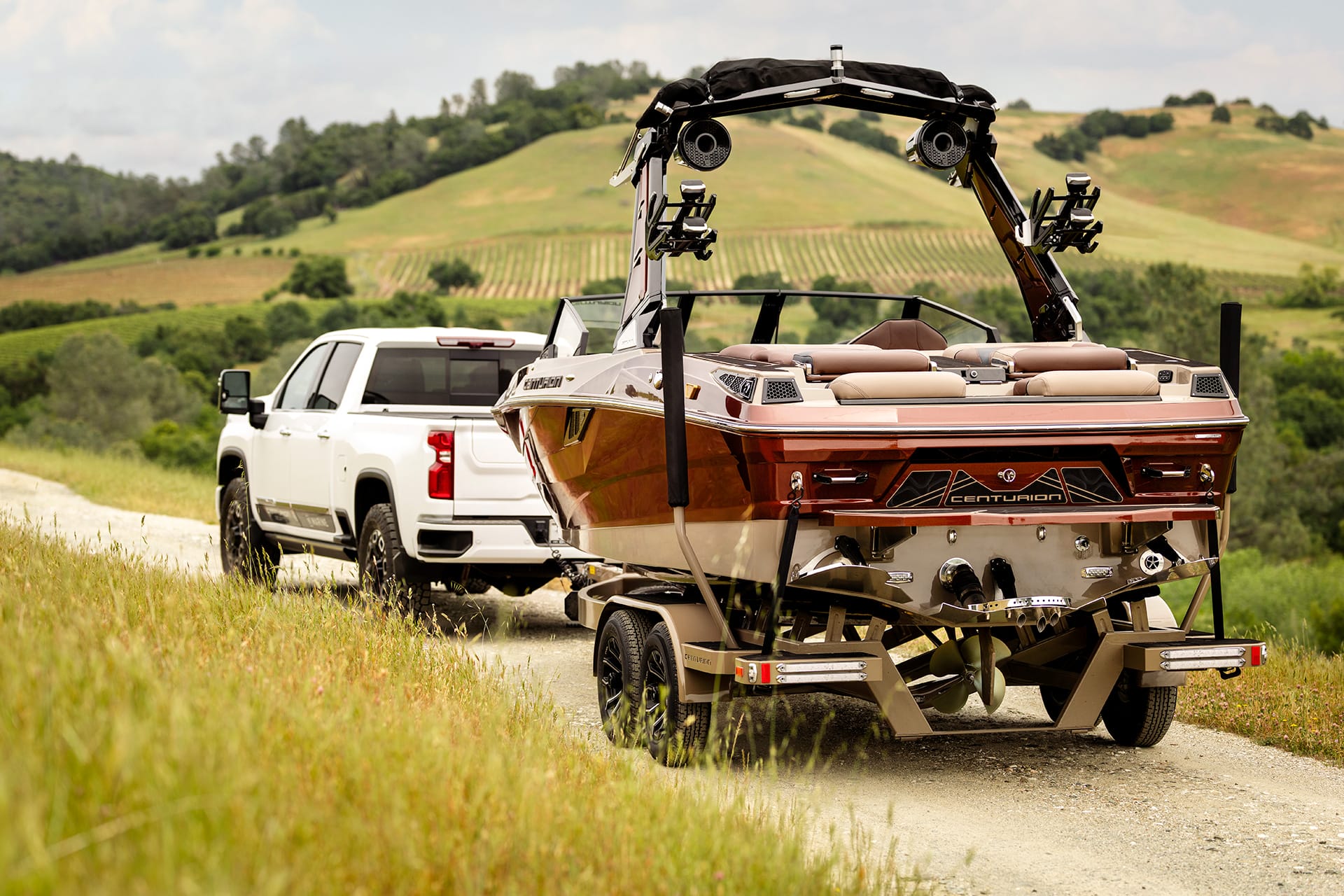

Overall Length

27' 3"

Length w/out Platform

26' 3"

Length w/out Platform, Tongue Swung

24' 3"

Trailer Width

8' 6"

Height w/out Tower

7’ 6"

Height, 18" Wheel Package (Add)

+1.5"

Height w/ Battle Advanced Tower

10' 6"

Height w/ Battle Advanced Tower Down

8' 5"

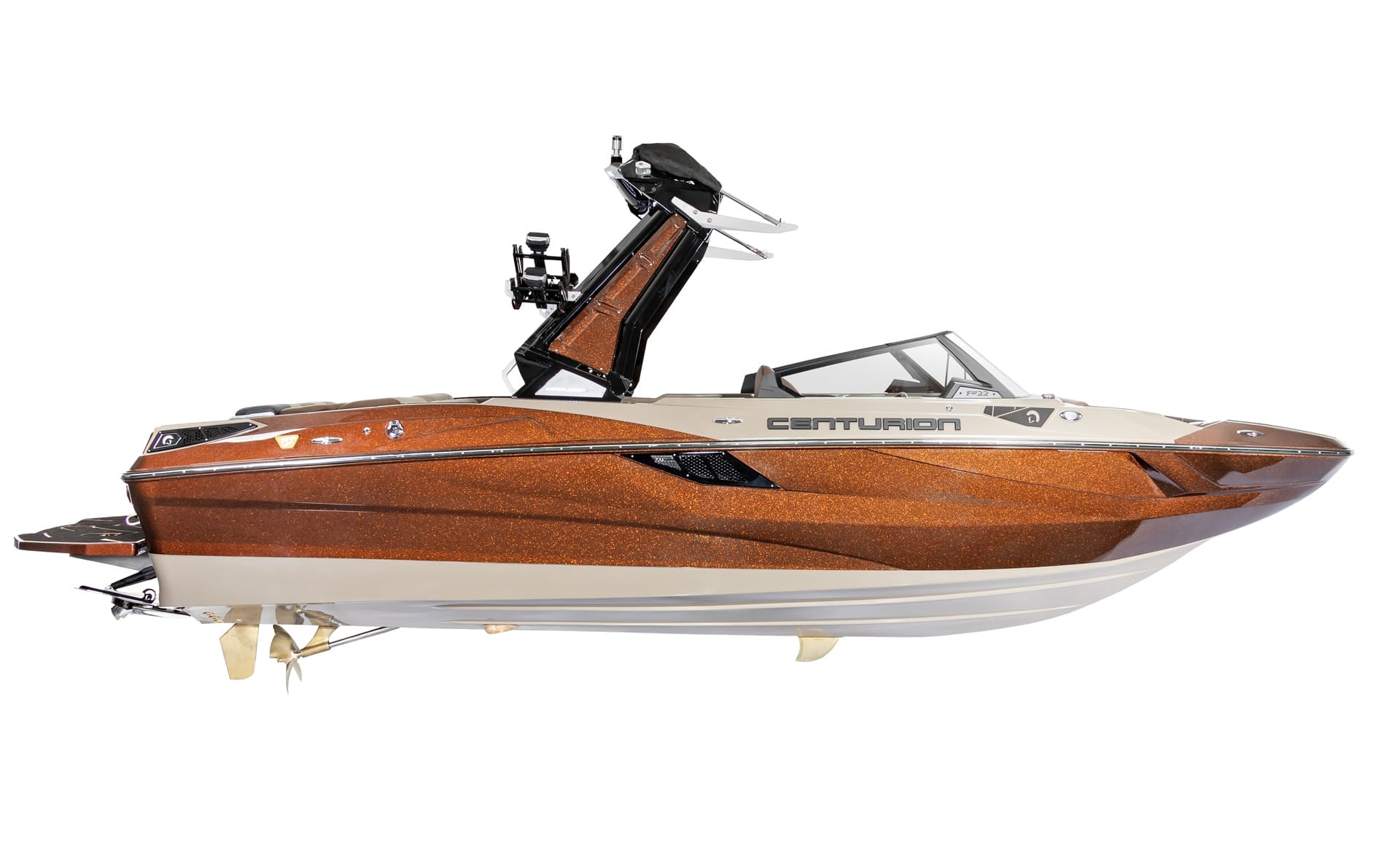

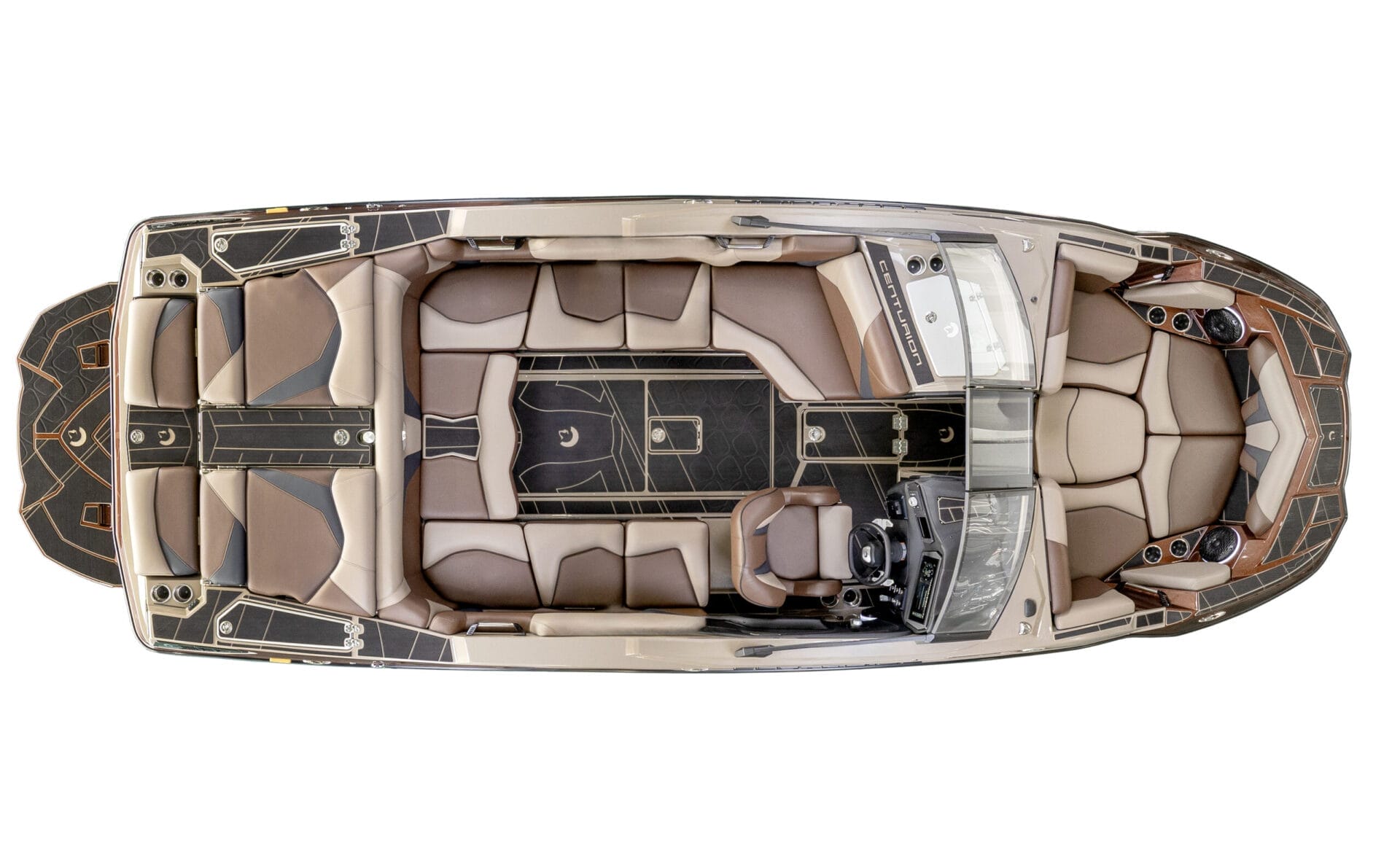

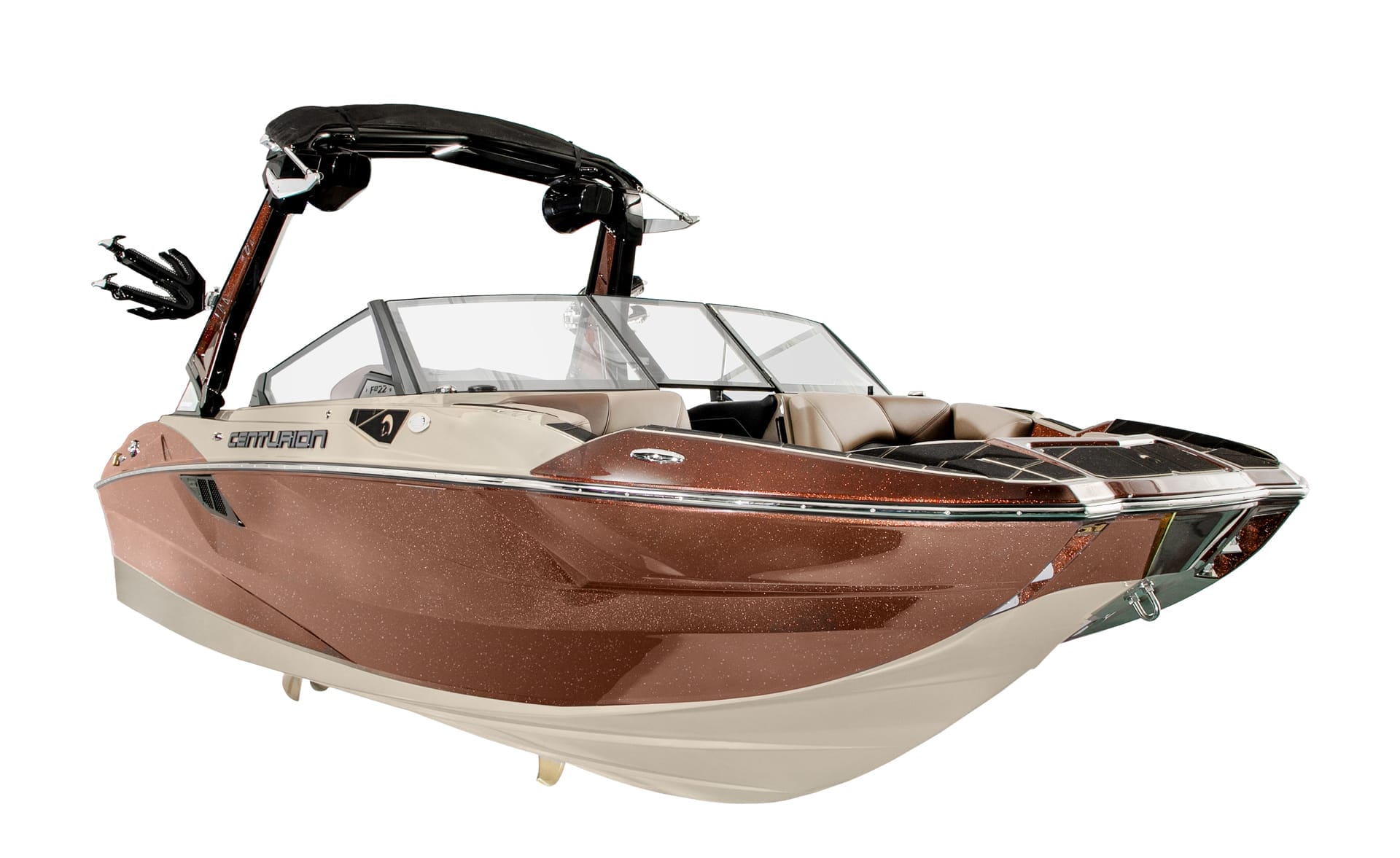

Model Shown: Core Scheme | Hull Main Front: Mist Blue Metal Flake | Hull Base: Stone Gray | Swim Step: Mist Blue Metal Flake | Tower: Battle Advance: Black | Tower Accent: White Frost | Interior | Hex Accent Scheme | Main: Stone | Base: Mocha | Accent: Tan | Accent 2: ? | Welt: White Frost | Stitching Accent: White | Dash Accent: Tan | Interior Side Panel: Mist Blue Metal Flake | Gator Step: 3-Color Salute to Service | 1st Color Top: Whiskey Barrel | 2nd Color Middle: Silver Cloud | 3rd Color Bottom: Driftwood

Fineline Industries LLC reserves the right to change model specifications, standard and optional equipment, color schemes and pricing at any time without notice or incurring obligations. It is the Dealer’s responsibility to adhere to all State and Local regulations and laws governing minimum requirements needed on each boat, such as trailer brakes, kill switches and other safety equipment.

Make The Features Personal

We offer a long list of desirable options to enable you to customize your boat to match your needs. Here are a few popular choices.

Fe22 DEEP DIVE

Take a Walkthrough

Performance is our priority with the 2025 Fe Series. We have merged the best Centurion innovations with the strategic features of the Fe22 to deliver three models designed specifically for the best waves, wakes and ride – in that order. Whether you are a couple, a competitor or a large family, you will find a model that fits your needs perfectly – and won’t make waves in your budget. Each Fe boat is a ready-to-perform package but can be customized to fit your personal style with options to enhance an already well-appointed ride.

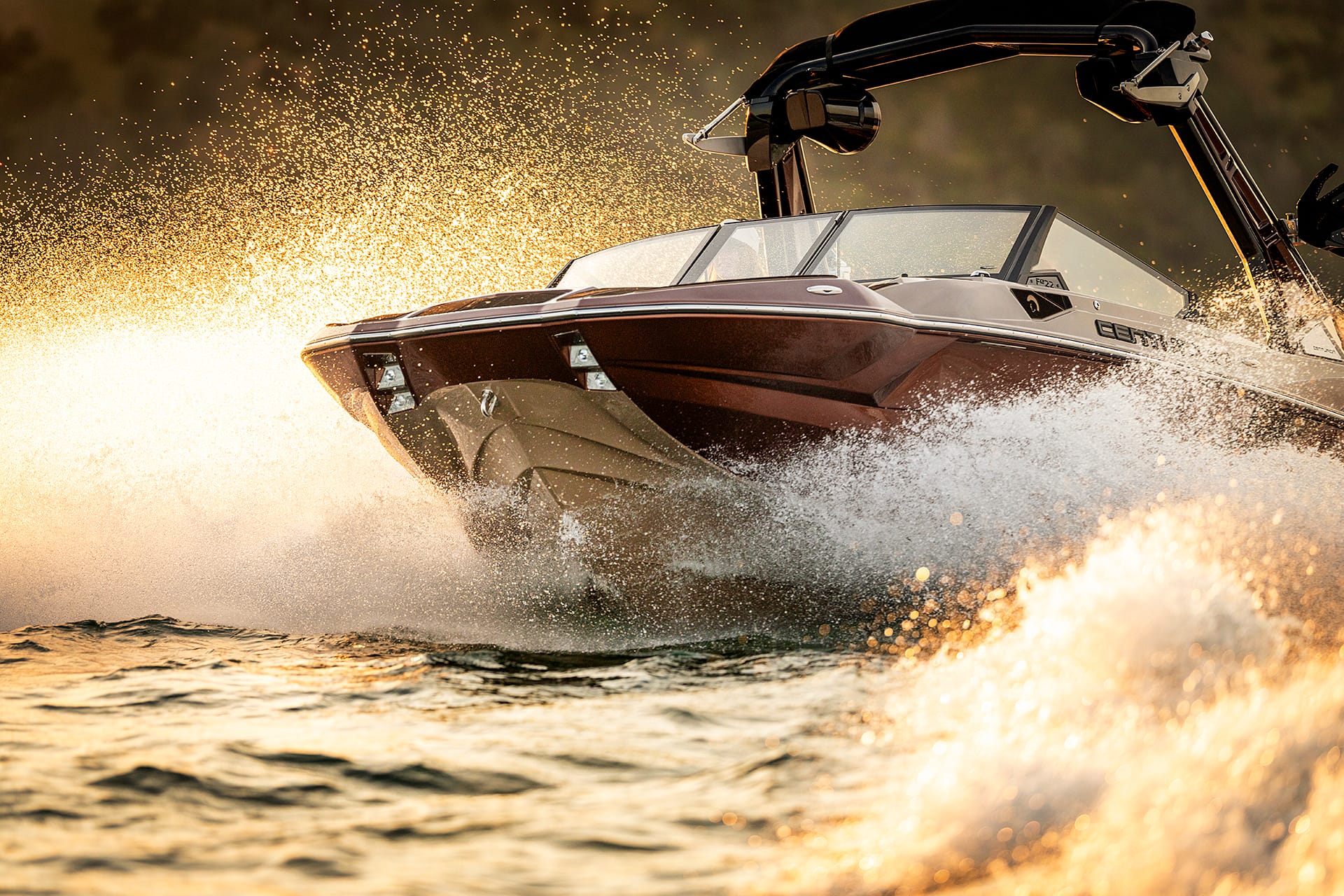

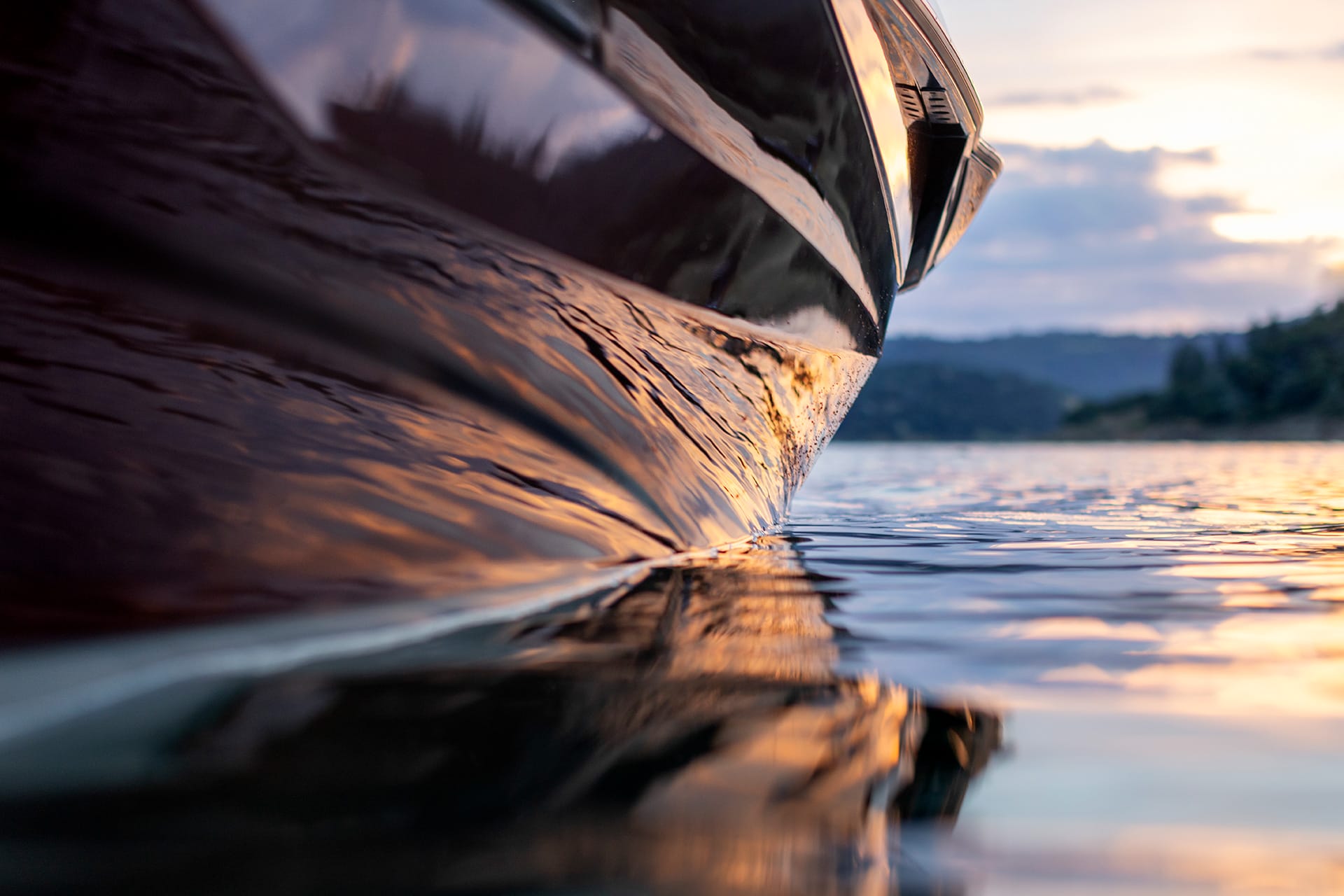

With its 20 degrees of deadrise at the transom, the Opti-V hull displaces more water, before any extra weight is added, while preserving a great rough water ride. At each corner of the transom a flat triangle extends towards bow creating lift along the rear half of the boat for a level running attitude, front to back as well as side to side. Due to this balanced design, the Opti-V Hull enhances fuel economy and provides a much quieter ride than most boats delivering this type of power. With hook built into the rear edge of delta pad, the seated driver can see over the bow while pulling a rider without compromising the waves or wakes thanks to a level running attitude. The hull also deflects rollers, at the bow and transom, so big water can’t spoil your fun. It’s clear the Opti-V Hull delivers the best waves, wakes and ride - in all conditions.

Discover Opti-V

The Fe22 comes with as many as seven precisely placed ballast locations that, when you combine them all, equals 5150 pounds of ballast. But large ballast capacity isn’t the complete story. We do ballast a little differently by distributing it evenly throughout the boat. This even distribution displaces weight the entire running surface of this 22-foot performance machine, resulting in a longer wave and a balanced running attitude, front to back, with virtually no bow rise to distract the driver. This is the kind of thing we believe makes a huge difference in your experience.

Discover Ballast

We love the fact that Centurion offers more than 50% better fuel efficiency than any other water sports boat out there. After all, better fuel efficiency means more time on the water and a less expensive ride for you. But how can we be so much more fuel efficient? It’s the design. Centurion’s Opti-V may be a modified deep-v hull designed to maximize displacement, but the running surface has a lot of lift built into it. This eliminates drag and creates balance for less resistance, meaning the engine doesn’t have to work as hard to push a Centurion through the water whether it is weighted to ride or set-up for a cruise.

Discover Fuel Efficiency

We have a nickname for the available RAMFILL² ballast system. We call it the “Baller.” It’s a nearly maintenance free system that offers 2600 pounds – plus of ballast capacity that fills in 90 seconds. With its four stainless steel two-inch valves (two in two out), anything plastic is eliminated. The large sub-floor tanks extend from the helm to the transom on each side of the lounge. This just adds to the well-distributed ballast placement and helps create longer waves with consistent push from the face to the curl crash. Baller, indeed.

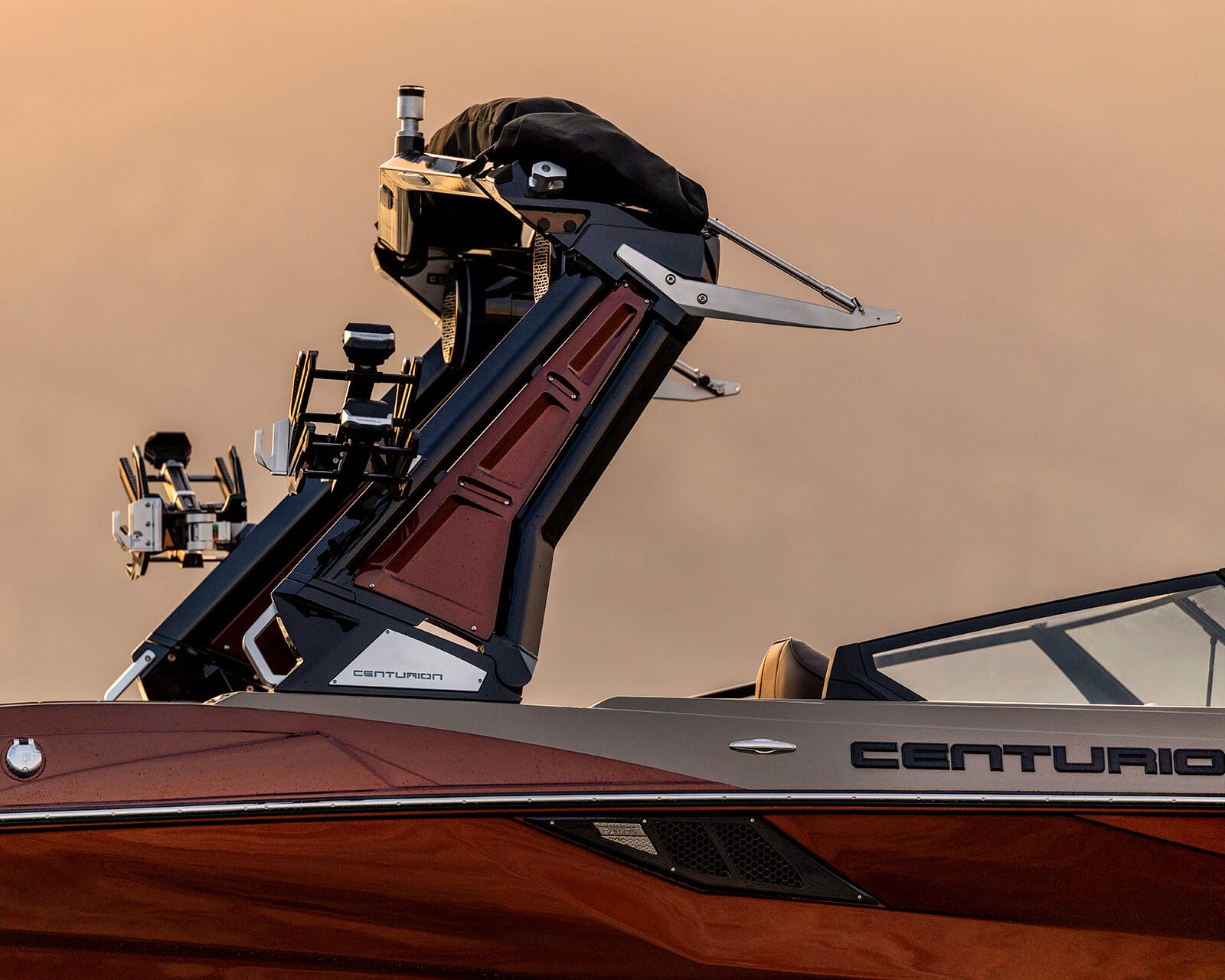

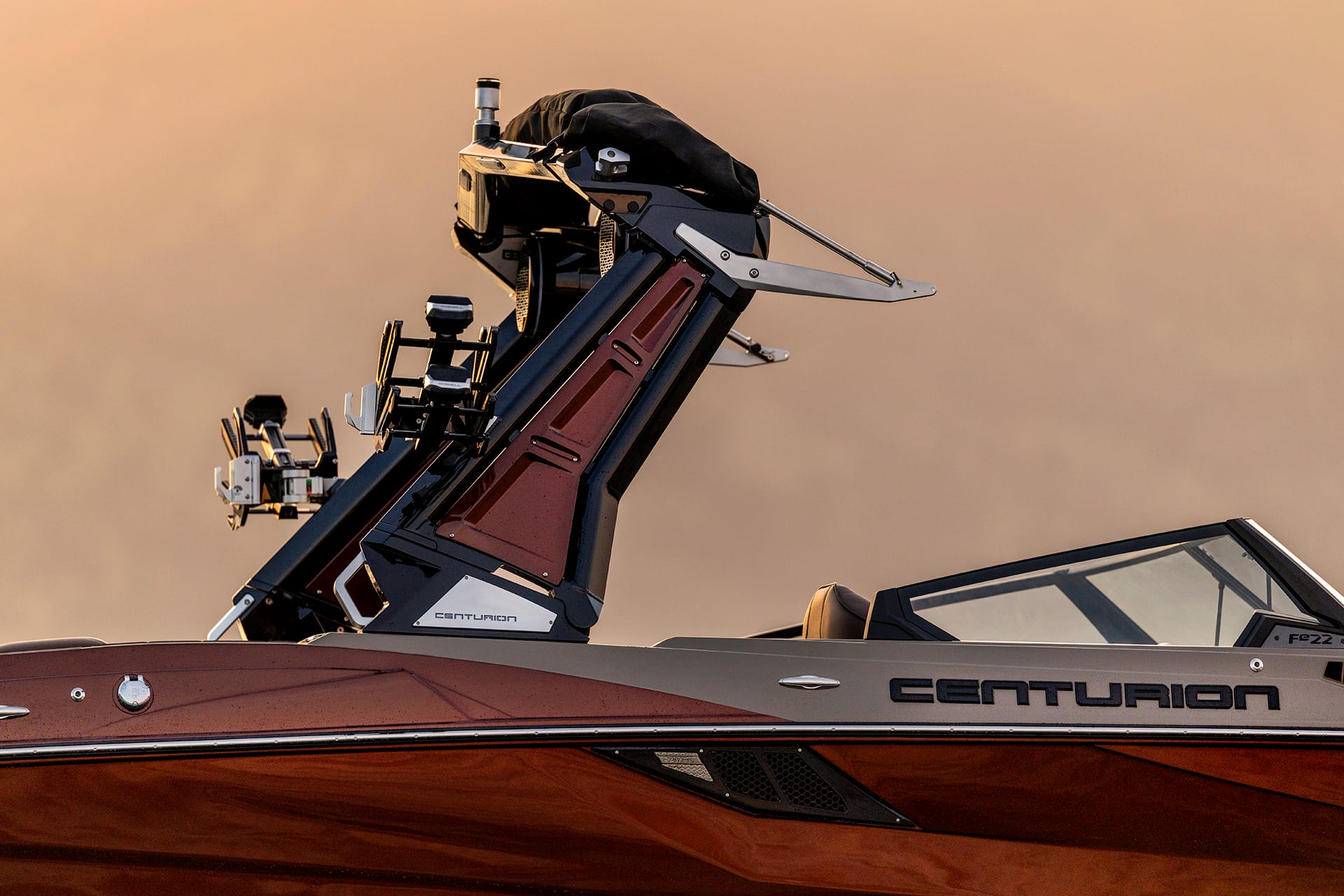

The aggressive Battle Advance Tower by Roswell, matches perfectly with the Fe Series. This tower can easily be folded by an individual in less than a minute. That’s efficient design in action. When it’s repositioned to the upright position you can hear the strength of the Battle Advance. No rattle, no shimmy, no shake. The silent movement indicates the precision with which this tower was made. The Roswell Patented CAM Over Latch design locks the hoop of the tower securely on to its base.
